    AOK-PDM

    Product Category:ODM And OEM

    Product Overview/Intended Use: This product is an intelligent charging management socket.

    Each socket has four independent AC charging sockets, enabling single charging or networked charging through a local area network with multiple sockets.

    Automatically monitor the charging load of each device with a full load of 20A until it is fully charged, and then move it to the next charging port in sequence.

    The extended function is a unique feature of this intelligent charging plug device, as the total current limit of the plug is 20A, allowing for reliable management of battery charging without human supervision.


Consult Now
Detailed Introduction

输入特性/Input characteristics:

序号/NO

项目/Item

规格/Spec

备注/Remark

1

输入电压范围/Input voltage range

90-264V AC

100/220V AC

2

输入电流范围/Input current range

0-16A


3

频率范围/Frequency range

47-63 Hz


4

空载功耗/Power consumption(no load)

6W


5

交流输入插座/AC input socket

1Pcs 0-16A


6

转换插座/Switched

1Pcs 0-16A


输出特性/output characteristic:

序号/NO

项目/Item

规格/Spec

备注/Remark

1

输出电压范围/Output voltage range

90-264V AC

100/220V AC

2

输入电流范围/Input current range

0-16A


3

频率范围/Frequency range

47-63 Hz


4

交流输出插座/AC Output socket

4PCS 0-16A


环境要求/Environmental requirements

序号/NO

项目/Item

规格/Spec

备注/Remark

1

工作温度/Operation temp

0 - 40℃


2

存储温度/Storage temp

-20 - 65℃


3

工作湿度/Operation humidity

5 - 95%


4

存储湿度/Storage humidity

5 - 95%


5

散热方式/Cooling mode

自然冷却/natural cooling

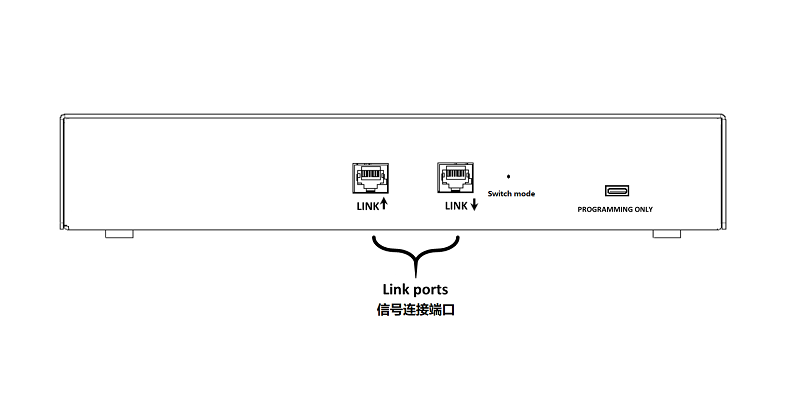

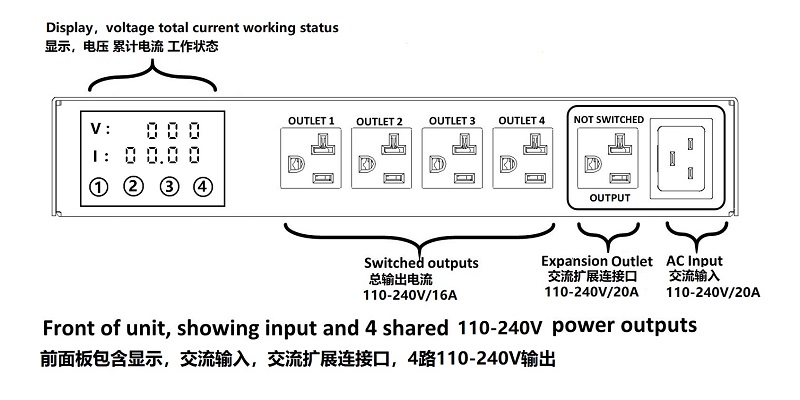

接口定义/Connector Definition
